ACR880 SDK
ACR880 SDK
The portable ACR880 from ACS is a secure and feature-rich handheld programmable smartcard terminal that can be used for a wide range of applications and transactions involving smartcard technology. The ACR880 has twin landing contact smartcard reader slots plus a contactless card reader and two internal SAM slots.
The terminal can operate in two modes - linked to a PC when docked in its charging cradle, or stand-alone. Its powerful 32-bit ARM9 processor runs Embedded Linux, for which stand-alone application firmware can be developed and downloaded as required.
The ACR880 also has a quad-band GPRS mobile data modem on board, as well as a high-resolution back-lit LCD, status LEDs, speaker and durable 20-button keypad.
The supplied cradle will charge the internal battery when docked, and also provides convenient connections for the USB host and client interfaces plus RS232 serial and TCP/IP Ethernet ports.
Developers of new applications will need to purchase the ACR880 SDK first.
Note: To use the GPRS feature, a separate SIM card and suitable service contract will be required.

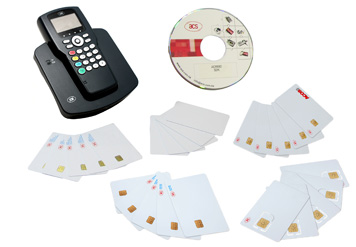

The ACR880 SDK is a complete package providing all the components required for application development:- ACR880 GPRS Portable Smart Card Terminal
- Smartcards (5xACOS3 microprocessor-based smartcards; 5xACOS6 SAM-sized microprocessor-based smartcards; 5xMiFare 1k contactless cards; 5xSLE 5528 memory-based smartcards; 5xSLE 5542 memory-based smartcards)
- Accesories (1xPower Adapter; Rechargable/Replacable Lithium Ion Battery; 1xRS232 Serial Cable; 1xUSB cable; 1xRJ-45 Ethernet Cable)
- SDK CD-ROM (including User Manuals, Reference Materials and sample code)
For a complete summary of the contents of the SDK CD click on the ‘More info’ button below.
Prices shown are per unit, excluding VAT and delivery.
Please contact us for higher volumes.
Availability: In stock
|
|
Related Products:
| ACR880 GPRS Portable Smart Card Terminal
A secure, portable and programmable smartcard terminal with high resolution graphical LCD, user-friendly keypad, dual smartcard interface, contactless card reader module and multiple SAM slots. The terminal can function as a desktop device with other peripherals attached or as a standalone, hand-held reader. SDK available.
|
In stock
|
£ 499.00
| *Volume discounts may be available. Click on the product for further information.
|
