ACM1281U-C7 contactless reader module
1 Year Manufacturers Warranty
Standards / Certifications:
USB Full Speed
PC/SC
CE, FCC, RoHS, CCID
ISO 14443, ISO 7816 (SAM slot), MIFARE
Technical Specifications:
Operating frequency: 13.56 MHz
Host Interface: Full speed USB
Supply Voltage: Regulated 5V DC
Supply Current: Max 50mA
Dimensions: 106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
Operating distance: Up to 50 mm
Operating System: Windows XP to Windows 10, Windows Server 2003 to Windows Server 2016, Linux, Mac, Android 3.1 and above

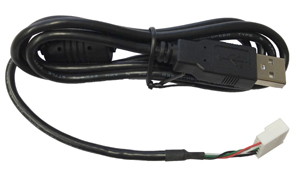

The reader comes complete with the below shown captive USB cable:
Manufacturer: ACS
Connection Method: USB
