VTAP25 embedded NFC reader module - USB & Serial

VTAP25 embedded NFC reader module - USB & Serial
Availability: Low stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 89.00
(£ 106.80 inc VAT)
Units
Per Unit
1+
£ 89.00
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

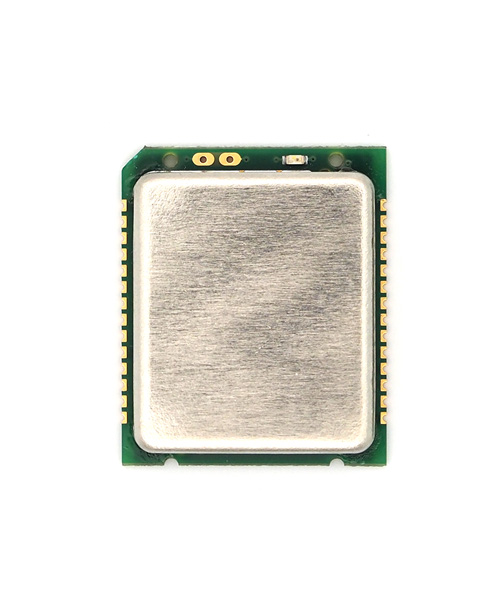

The VTAP25 NFC reader module is a universal contactless NFC reader module for quick integration and easy certification in any mobile wallet scenario where a small form-factor and/or custom antenna is required.

USB and multiple serial host interfaces, with secure embedded management and firmware update capabilities.

VTAP readers support a wide range of cards, tags and secure NFC credentials, including Apple Wallet, Google Wallet, MIFARE® and NFC tag types.

Key features and benefits:

  • Fully certified by Apple and Google for VAS and Smart Tap. Tested and qualified for ECP2 access control - modules also generally require certification in final enclosure.

  • 5V or 3.3V supply with on-board power management, USB VBUS detection and low power mode for use with battery-powered devices

  • USB and serial UART, SPI and I2C interfaces via castellated SMD pinout. Development kit/reference design/antenna also available.

  • MIFARE & NFC tag support including UID, MIFARE sector, secure DESFire, Ultralight AES, NDEF, HCE and MIFARE2Go

  • Support for up to 255 external serial RGB LEDs including animation

  • Configuration, keys and firmware updates managed locally over USB or serial

  • Powerful real and virtual COM interface with multiple protocols including secure OSDP over serial, SPI and I2C

  • Secure on-board decryption of many pass types and storage of multiple ECC and AES keys

  • Additional NFC tag emulation and GymKit handoff modes

  • On board EAL6+ secure element (SE050) plus other additional I/O pins and features available
