ACR122L Serial with LCD


ACR122L Serial with LCD
Availability: In stock
£  99.95 Quantity
Units
Per Unit
1+
£ 99.95
10+
£ 94.95
50+
£ 89.96
100+
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

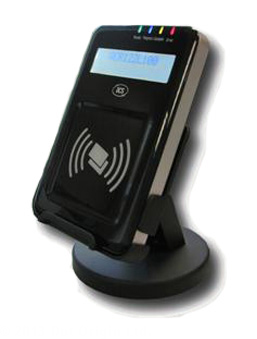

The ACR122L serial RS232 desktop reader with LCD is an NFC contactless smartcard reader that has been developed based on the 13.56 MHz Contactless (RFID) Technology and the ISO/IEC 18092 Standard for Near Field Communication (NFC), supporting both NFC and Felica contactless technologies as well as MIFARE and ISO 14443 Type A and B cards. The ACR122L is a serial RS232 Plug and Play device which allows interoperability with various different devices and applications.

The reader comes with 4 LEDs, a buzzer and a 2-line graphic LCD for rich user interaction. The ACR122L is also equipped with 3 internal ISO 7816 SAM slots for secure NFC and contactless operations.

The operating distance is 5 cm depending on the type of contactless card or tag in use.

The ACR122L is ideal for various NFC and contactless applications such as e-payment, e-ticketing, point-of-sale and embedded systems.

The package comes with a retractable stand, and a cable with a standard 9-pin serial connector for data communication, plus a connector for power transmission from the enclosed 7V AC/DC adaptor.

Supports all 3 NFC modes (reader, card emulation and peer-to-peer) and all 4 types of NFC cards and tags.

The ACR122L is compatible with Read-a-Card, the contactless card ID reading application, useful for the integration of RFID technology into new or existing systems.

Developers of new applications will need to purchase the ACR122L Serial SDK first.

ACR122L Serial with LCD



Technical Specifications
Serial InterfacePower source: 7V DC
Speed: 9.6kbps, 115.2 kbps
Supply Voltage: regulated 7V DC
Supply Current: 200mA (max); 50 mA (standby); 100mA (normal)
Contactless Smartcard InterfaceStandard: MIFARE, ISO14443-4 Type A&B, FeliCa, ISO/IEC 18092 NFC
Operating Frequency: 13.56 MHz
Smartcard read/write speed: 106, 212, 424 kbps
SAM Card InterfaceStandard: ISO7816
Protocol: T=0 protocol
Operating Frequency: 4MHz
Smart card read/write speed: 9600-115200 bps
Physical SpecificationsDimensions: 133 mm (L) x 88 mm (W) x 95 mm (H)
Weight: 600g
Colour: black
Operating distance: up to 50 mm (depending on tag type)
Built-in PeripheralsUser controllable bi-colour LED: 4 LEDs (green, blue, yellow and red)
Buzzer: Monotone
Operating conditionsTemperature: 0-50C
Humidity: 10%-80%
Cable ConnectorLength: 1.5m (DB9 + DC Connector
Certifications/ComplianceCE, FCC, VCCI, RoHS Compliant
Operating System SupportWin 98, ME, 2000, Server 2003, XP, Vista,
Server 2008 R2, 7, Windows CE 5.0, Linux, Mac

SDK CD-ROM contains:


(When purchased as part of an SDK or Starter Kit)
Software driversSupports Windows XP, Vista and 7 (x86 & x 64)
Utility ToolsACR122L Tool - an application utility tool that enables the user to perform reader and card related commands
EasyKey - EasyKey is designed to work with MIFARE contactless cards by creating different access condition values to the MIFARE contactless cards
QuickView - The ACS Quickview is a utility program that will check if you have properly installed the ACR122L device
Sample CodesDemonstrates basic commands used to communicate with the cards and reader
Java, Visual Basic 6.0, Visual Basic .NET 2008, Visual Basic .NET 2008 (x64), Visual C# .NET 2008, Visual C# .NET 2008 (x64), Visual C++ 6.0, Visual C++ (x64) and Turbo Delphi 2006
Demo ApplicationPOS and Loyalty demo
Reference ManualsEasy to use reference manuals to help with the development process
Technical SpecificationsIncludes detailed technical specifications of all the contained products


Manufacturer: ACS

Connection Method: RS232
