ACR1281U-C1

ACR1281U-C1
Availability: Low stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 54.82
(£ 65.78 inc VAT)
Units
Per Unit
1+
£ 54.82
10+
£ 53.18
50+
£ 52.08
100+
£ 50.43
250+
Contact us
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

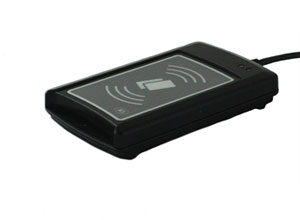

The ACR1281 dual interface USB smartcard reader from ACS is the second generation of the ACR128 reader featuring improved performance and firmware upgradability.

The ACR1281 is compliant to ISO 7816 for contact smartcards as well as ISO 14443 for contactless cards, enabling the user to integrate separate and independent contact and contactless technologies into one device. The reader is equipped with an internal SAM-slot to enable secure transactions in both contact and contactless applications. The sleek housing of the ACR1281 has been designed to detect a contactless card even if it is inserted in the contact card slot.

The ACR1281 DualBoost smartcard reader is PC/SC compliant for both contact and contactless interfaces and supports high-speed communication for contactless cards (max. 848 kbps).

This reader is backwards compatible with the ACR128.

Now includes a FREE trial copy of 'Read-a-Card', the contactless card ID reading application, exclusive to Smartcard Focus.

ACR1281U-C1



1 Year Manufacturers Warranty

Standards and Certifications:
ISO-7816 1-3 (contact card reader)
ISO14443 1-4 (contactless card reader)
PC/SC 2.01
CE
FCC
RoHS

Technical Specifications:
Connection method: USB
Supplied voltage: Regulated 5V DC
Supplied current: 200mA (operating); 50mA (standby)
Operating Distance: <= 50mm
Operating Frequencies for PICC: 13.56 MHz
Operating Frequency for ICC and SAM: 3.58 MHz
Operating System: Windows 98, ME, 2000, XP, Vista, 7

Features:
User-controllable monotone buzzer
2 User-controllable LEDs
Supports Multi-Block Transfer Mode
High-speed communication (e.g. 424 kbps, 848 kbps)
Support Major ISO14443 Type A/ B cards
Native T=CL support for ISO14443-4
T=CL emulation for MIFARE Classic PICCs., e.g. MIFARE 1K, 4K, Mini and Ultralight
Durable landing-typed Smart Card connector
Built-in SAM card slot
Support major ISO7816 cards
Built-in Antenna

SDK CD-ROM Contains: (When purchased as part of an SDK)
Software drivers: Supports Supports Supports Windows2000, XP, 2003, and VISTA
Demo programs: ACR128 Multi-Application demo - shows a real world business application.
Utility Tools:
- ACR128 Tool - enables users to perform reader and contactless card (ISO 14443 Type A & B, MIFARE) related commands
- ACS Card Tool - allows users to send commands from a PC/SC compliant smart card reader to an ISO7816 compliant smartcard
- ACS QuickView - checks for proper driver installation
- ACS EasyKey - helps to change MIFARE security settings
Sample Codes: Demonstrates basic commands used to communicate with the ACR128 reader and the smart cards. Visual Basic 6, Visual C++ 6, Visual C++ 2005 (x64), Delphi 7, VB.NET 2005, Visual C# 2005
Reference Manuals: Easy to use reference manuals to help with the development process
Technical Specifications: Includes detailed technical specifications of all the contained products
Firmware upgradable

Manufacturer: ACS

Connection Method: USB Keyboard

ACR1281U Product Briefing

ACR1281U_product_briefing.pdf
Download everything you have read here on SmartcardFocus about the ACR1281U.
download

ACR1281U Technical Specification

TechnicalSpecification_TSP-ACR1281U-C1-1.09_May2020.pdf
Technical Specification v1.09 for ACR1281U from ACS.
download
×
