ACR89 PINpad smartcard reader

ACR89 PINpad smartcard reader
Availability: In stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 109.06
(£ 130.87 inc VAT)
Units
Per Unit
1+
£ 109.06
10+
£ 104.70
50+
£ 102.52
100+
£ 99.24
250+
Contact us
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

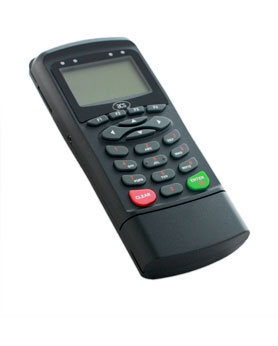

The ACR89 from ACS is a highly secure, programmable, handheld smartcard terminal that combines a high resolution graphical LCD, 4 LED status indicators 2 full size landing and 3 SAM/mini-SIM slots. The ACR89 is a replacement to the popular ACR88 unit, featuring a longer battery life with a rechargeable Li-ion battery, USB firmware upgradability, larger programmable memory and a high performance 32-bit RISC processor.

The ACR89 can operate in both stand-alone battery-powered and connected mode. Equipped with a highly durable colour-coded PIN-pad, this terminal is suitable for various smartcard applications including Loyalty, e-Payment, e-Healthcare and e-Government.

ACR89



1 Year Manufacturers Warranty

Standards and Certifications:
ISO 7816
ISO 14443 A/B
PC/SC
FCC
CE
EMV Level 1
RoHS Compliant

Protocols / Cards Supported::
Supports all MCU smartcards using T=0 or T=1 protocols as well as all ISO 7816 compliant cards

Technical Specifications:
Connection method: USB full speed
Supplied current: max. 60mA
Dimensions: 181mm (L) x 77mm (W) x 30.5mm (H)
Operating voltage: 3.7V
Power PC-linked mode: Automatically switch to USB bus power, always ON.
Power Standalone mode: Automatically switch to Lithium rechargable battery power, soft ON/OFF switch
Power consumption: Less than 40mA (excluding card and backlight)
Supply Current: max. 60mA
Operating Temperature: 0-50oC
CLK Frequency: 4.8 MHz

Features:

128x64 dot-matrix LCD with back light
20-key keypad with extremely high durability
Tamper sensing switch
Buzzer with software switching control
LED status indicators

Manufacturer: ACS

Connection Method: USB

ACR89U Product Briefing

ACR89U_product_briefing.pdf
Download everything you have read here on SmartcardFocus about the ACR89U.
download

ACR89U Technical Specification

TechnicalSpecification_TSP-ACR89U-A1-1.26_Jul2017.pdf
Technical Specification v1.26 for ACR89U from ACS.
download
×
