DTAG100-NFC dynamic tag module


DTAG100-NFC dynamic tag module
Availability: In stock
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock – This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* – This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock – This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from ‘in stock’ product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Waiting for stock – This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand – We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that ‘Ordered on demand’ items are not returnable.
Contact us – There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available – There are no plans to restock this item, it will shortly be removed from the site.
£   89.00
(£  106.80 inc VAT)
Units
Per Unit
1+
£   89.00
10+
£   80.10
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

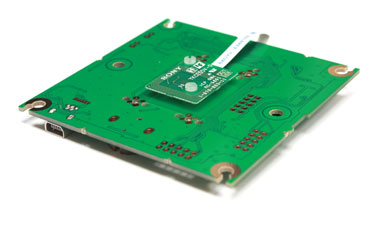

The DTAG100-NFC dynamic tag module from Dot Origin is a internal device that enables easy and rapid modification of NFC tag data via USB. Part of the well-established DTAG100 range of intelligent beacons and dynamic NFC tags, the DTAG100-NFC is designed to connect directly with digital signage, media players, PCs and other systems, offering complete platform independence without the need for software drivers or any knowledge of NFC protocols or tag data formats.

Unlike standard NFC tags, which cannot be updated dynamically in the field, the DTAG100-NFC connects via USB and is designed to appear as a standard removable mass storage device. All configuration is via simple text files that can be edited manually or generated easily by applications or add-on scripts. To compatible mobile phones, it appears as a true standards-based NFC tag that can be changed and updated by the attached system whenever needed. It has the ability to serve all possible NDEF tag types, including Smart Posters, vCards, app download, multi-record and even embedded MIME types!

With plenty of on-board flash storage, the DTAG100-NFC is also capable of intelligent, stand-alone operation, with comprehensive logging and monitoring features. As well as customised NFC tag data, the DTAG100-NFC also enables application data to be transmitted back from the phone via NFC, opening up opportunities for exciting new interactions and uses.

The DTAG100-NFC is suitable for use in many applications including NFC-enabling out-of-home (OOH) advertising platforms and other digital signage products and solutions, as well as for interactive kiosks and payment applications. The built-in software-controlled hotspot highlighting LEDs can be used to enhance the user experience where appropriate, and a desktop enclosure and various other options for integration are available - please contact us for more details.

The DTAG100-PRO is also available, which adds full iBeacon and custom BLE beacon support.

The DTAG100-NFC has been tested with a wide variety of phones and host systems, including Android, Windows and Linux. It comes complete with USB cable and links to full user documentation, developer guide and a comprehensive suite of demo apps for Chrome and Android, including source code and full technical support.

DTAG100



DTAG100 Technical Specifications

Form-factor: Desktop case, wallbox or bare PCB
Dimensions: PCB: 78 x 78 x 15mm (3.1 x 3.1 x 0.59in) ; Cased: 110 x 110 x 60mm (4.3 x 4.3 x 2.4in)
Proximity interfaces: NFC + Bluetooth LE (DTAG100-PRO); NFC only (DTAG100-NFC)
Host interface + power: USB
LED highlighting: Yes - default 700mcd blue x 4
Device emulation: Mass storage, keyboard, serial COM
Secure firmware update: Yes, via USB mass storage
On-board data storage: 512KB, expandable to 2GB
Host O/S compatibility: Any
NFC antenna: PCB 24 x 20mm (0.94 x 0.78in), optional 150mm (5.9in) cable
Dynamic NFC tag: Yes
Multiple NDEF records/types: Yes
NFC activity logging: Yes
NFC write-back: Yes

Bluetooth functions - DTAG100-PRO only
BLE antenna:Ceramic, optional external UFL/SMA
Dynamic BLE beacon: Yes
Multiple virtual beacons: Yes*
iBeacon/proprietary beacons: Yes
Dynamic GATT attributes: Yes
BLE activity logging: Yes
BLE write-back: Yes

Manufacturer: Dot Origin
