Feitian iR301-L smartcard reader for iPhone 5/6/7


Feitian iR301-L smartcard reader for iPhone 5/6/7
Availability: In stock
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock – This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* – This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock – This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from ‘in stock’ product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Waiting for stock – This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand – We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that ‘Ordered on demand’ items are not returnable.
Contact us – There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available – There are no plans to restock this item, it will shortly be removed from the site.
£   37.95
(£   45.54 inc VAT)
Units
Per Unit
1+
£   37.95
10+
£   36.43
100+
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

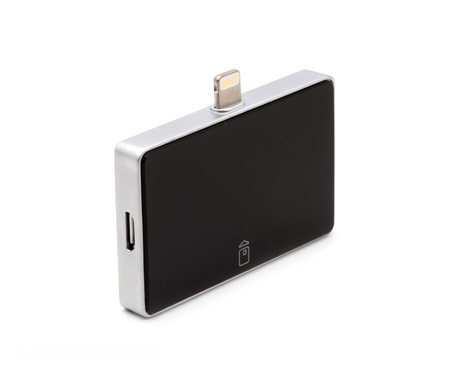

The iR301-L is a contact smartcard reader that enables smartcard applications to be deployed on iOS devices.

Part of a range of readers that includes both plug-in and outer casing devices for most iPhones and iPads, the iR301-L also features a micro-USB port and CCID compatibility, providing additional support for other operating systems including Windows, Linux and Android.

This version of the iR301 comes with an 8 pin Apple Lightning connector and is primarily designed for use with the iPhone 5/6.

A full SDK including developer guides, libraries and sample code is provided with each order.

This IR301-L-C56 version is an update on the IR301-L-12A, with some small cosmetic changes.

iR301-L-C56



Technical Specifications

Product:

Credential type(s): Contact
Form factor: Portable
Connector: Micro USB Type A 2.0 and Lightning connector
OS support: Win2000+, Linux, macOS X, UNIX, Android(OTG), iOS

Contact Smartcard Interface:

Contact interface standard: ISO / IEC7816, Class A, B, C cards
Data transmission protocol: T=0 and T=1
Card contacts: Friction
Contact read/write speed: 10 753 - 625 000bp (when supported by card)
Card insertion cycles: Min 100 000
Card Deck: 8 contact points (ISO7816 standard)

Other Features:

Status indicator: Blue and white LED

Certifications:

Manufacturer's warranty: 2 years
MTBF: 500 000hrs
Type approvals: CE, FCC, MFi, RoHS, EMV Level 1
Country of origin:  China

Physical:

Dimensions: 58 × 46 × 7.5mm (2.28 x 1.81 x 0.30 inches)
Weight: 34g (1.2oz)
Cable length supplied: 0.8m (31.5in)
Casing: Metal + ABS + PC

Power:

Supply voltage: USB port 5V DC
Operating current: <50mA without card inserted

Environment:

Working Temperature: 0C to 60C (32 to 140F)
Storage Temperature: - 20C to 85C (-4 to 185F)
Operating/Storage Humidity: 0 to 90%RH non-condensing

Manufacturer's part number: FT IT301-L-C56

Manufacturer: Feitian

Connection Method: Other

×
