ACM1281U-C7 contactless reader module

ACM1281U-C7 contactless reader module
Availability: In stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 63.54
(£ 76.25 inc VAT)
Units
Per Unit
1+
£ 63.54
10+
£ 61.00
50+
£ 59.73
100+
£ 57.82
250+
Contact us
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

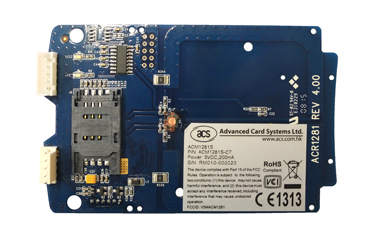

The ACM1281U-C7 contactless reader module from ACS is a 13.56 MHz USB contactless board that supports ISO 14443 and the MIFARE Classic series. Featuring an ISO 7816-compliant SAM slot, this reader module is ideal for highly secure smartcard application areas including vending machine payment systems, gaming machines and kiosks.

Firmware upgradable, the ACM1281U-C7 features an on-board antenna and a maximum communication speed of 848 kbps.

Comes complete with captive USB cable.

ACM1281U-C7 contactless reader module



1 Year Manufacturers Warranty

Standards / Certifications:
USB Full Speed
PC/SC
CE, FCC, RoHS, CCID
ISO 14443, ISO 7816 (SAM slot), MIFARE

Technical Specifications:
Operating frequency: 13.56 MHz
Host Interface: Full speed USB
Supply Voltage: Regulated 5V DC
Supply Current: Max 50mA
Dimensions: 106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
Operating distance: Up to 50 mm
Operating System: Windows XP to Windows 10, Windows Server 2003 to Windows Server 2016, Linux, Mac, Android 3.1 and above
The reader comes complete with the below shown captive USB cable:

Manufacturer: ACS

Connection Method: USB
