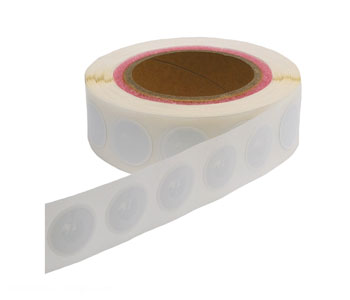

MIFARE DESFire EV1 256 byte label - circular 29mm


MIFARE DESFire EV1 256 byte label - circular 29mm
Availability: In stock
£  0.81
(£  0.97 inc VAT)
Units
Per Unit
1+
£ 0.81
10+
£ 0.77
100+
£ 0.74
250+
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.
The MIFARE DESFire EV1 256 byte label from NXP is the entry level product in the MIFARE DESFire EV1 family, with a 7 byte unique identifier.

This read-write DESFire EV1 label is ideal for applications with low memory but high security and data integrity requirements. It operates at 13.56 MHz wireless frequency, according to the ISO/IEC 14443A standard. The MIFARE DESFire EV1 label has 256 bytes of application memory, organised in a file system, using ISO/IEC 7816-4 commands.

The MIFARE DESFire EV1 label offers fast data transfer rates of up to 848kbit/s and an operating distance of up to 100mm depending on the power provided by the reader.

It includes on-chip backup management, mutual three-pass authentication, anti-tear mechanism and encrypted communication. Ideal for smart visitor badges, public transport ticketing, event ticketing and loyalty schemes as well as access control.

Pricing is per label.

MIFARE DESFire EV1 256 byte label - circular 29mm



RF Interface
Operating Frequency: 13.56MHz
Operating Distance: up to 100mm (depending on power and antenna geometry)
Protocol: ISO/IEC 14443-4
Baud rate: 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s
Anticollision: True deterministic

Security:
Unique serial number: 7 bytes (cascade level 2)
Random Number Generator: Yes
Access keys: 1 card master key and up to 14 keys per application
Access conditions: per application
Mutual authentication: ISO/IEC 7816-4
DES: Using 56/112/168 bit keys, 8 byte CMAC
AES: Using 128 bit keys, 8 byte CMAC
Access keys: 1 card master key and up to 14 keys per application

Special features:
Transaction-oriented automatic anti-tear mechanism
Backward compatibility: Compatible with MF3ICD40 (4 byte MAC, CRC 16)

Memory:
Physical non-volatile memory: 480 bytes organized in flexible file system
Application memory: 256 bytes
Data retention: 10 years
Write endurance: typically 500,000 cycles (minimum 200,000 cycles)
Write cycle time: 2.9ms

Environmental:
Storage temperature: -67 to 257 degF (-55 to 125 degC)
Ambient temperature: -13 to 158 degF (-25 to 70 degC)

Manufacturer's part number: MF3ICDQ1


Manufacturer: NXP
