Omnikey 5122 USB dual interface OEM reader board

Omnikey 5122 USB dual interface OEM reader board
Availability: In stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 40.20
(£ 48.24 inc VAT)
Units
Per Unit
1+
£ 40.20
250+
Contact us
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

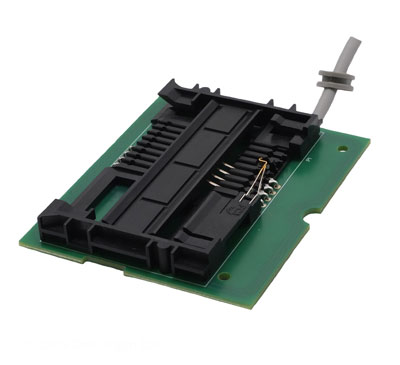

The Omnikey 5122 reader board from HID is a dual interface USB 2.0 smartcard reader that reads/writes to both 13.56 MHz contactless smartcards and virtually any contact smartcard technology.

This small PCB assembly is compliant with ISO specifications 14443 A/B and 15693 for contactless and 7816 for contact smartcard technologies. The reader features native CCID driver implementation, supporting Windows, Linux and Mac operating systems.

This reader has the same functionality as the Omnikey 5422 desktop unit, but in an OEM board format. Its contact card reader is the same technology used in the popular Omnikey 3121. A separate mounting bracket is also available if required.

Omnikey part number R51220349

Omnikey 5122 USB OEM reader board



Technical Specifications
Dimensions: 2.6" x 2.16" x 0.43" (66 x 55 x 11mm)
Weight: 2.65oz (75g)
Power Supply: 5V USB powered
Cable length: 70.9" (1.8m)
Operating Temperature: 32 to 131degF (0 to 55degC)
Operating Humidity: 10-95% rH (non-condensing)
MTBF: 500,000hrs

Host Interface
USB CCID (Standard 2.0 Type A connector), USB3.0 extended operability tested with hubs/controllers
Transmission Speed: 12 Mbps (USB full speed)

Contact Smartcard Interface
Supports Processor cards: following either T=0 or T=1 protocol
Supports Memory-based Smartcards: Cards following the 2WBP, 3WPB or I2C bus protocol and EEPROM memory cards such as SLE4418, SLE4428, SLE4442 and others.
Protocol standards: ISO 7816, Class A, B, C (5V, 3V, 1.8V); T=0; T=1; Memory card support
Supported APIs: PC/SC, CT-API (through wrapper on top of PC/SC)
Supply current: 60mA
Smartcard read/write speed: up to 420 kbps
Card detection: Movement detection, Automatic detection of card type, Short circuit and thermal protection
Clock frequency: up to 8MHz
Card insertion cycles: Min 100 000

Contactless Smartcard Interface
Supports: T=CL, MIFARE ISO 14443A/B up to 848kbps, iClass 15693 up to 26kbps, NFC tag types 1, 2 and 4

Human Interface
Status Indicator: Two LEDs

Compliance / Certification
RoHS, WEEE, USB 2.0

Operating System support
Windows, Linux, Mac OS

Manufacturer's part number: R51220349
Two year manufacturer's warranty

Manufacturer: Omnikey

Connection Method: USB

Omnikey 5122 USB OEM reader board
