Certgate AirID wearable Bluetooth card reader
AirID Technical Specifications Product: Manufacturer: certgate
Credential type(s): Contact
Form factor: Portable, designed to be carried on lanyard or clip (not supplied)
Connector: micro-USB - USB CCID (Standard 2.0 Type A connector)
OS support: Windows 10, Apple macOS 10.15 , iOS 13 , Android 8 , Linux
Bluetooth Interface: BLE interface standard: Bluetooth LE up to Version 5
BLE encryption: AES-256
Contact Smartcard Interface: Contact interface standard: ISO 7816
Contact card types: Contact chip - standard sized card, Processor cards (T=0 and T=1)
Data transmission protocol: T=0, T=1
Other Features: RFID smartcards: RFID capabilities of inserted smartcard uninterrupted
Jog-dial operation: Settings such as signal strength, backlight and contrast, buzzer, preferred device pairing, work schedule (for battery saving), separation between AirID and device that should trigger automatic logout
Display: 128 x 128 pixel LCD display
Status indicator: LEDs for Bluetooth connection, card activity and battery charge
Firmware in-field upgradeable: Yes, secure firmware update over USB
Certifications: Manufacturer's warranty: 1 year
Type approvals: CE, FCC, RoHS
Country of origin: Germany
Physical: Dimensions: 34 x 105 x 128 mm (1.34 x 4.13 x 5.04in)
Weight (±5%): 46g (1.6oz) AirID only, 140g (4.9oz) including accessories
Power: Battery power: Yes, rechargeable (default)
Battery life: 2 weeks (typical use)
Optional power supply
Manufacturer's part number: 102101100000

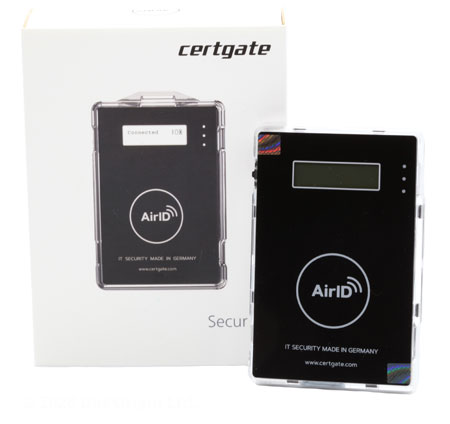

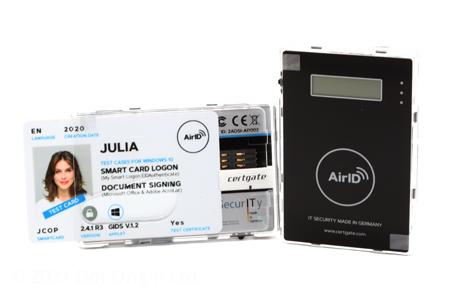

AirID Evaluation Kit An evaluation kit includes:
- Certgate AirID wearable Bluetooth card reader
- Smartcard JCOP 2.4.1 R3 with GIDS applet and demo certificate
- Instructions to use this to demonstrate Windows logon
Evaluation kit - Manufacturer's part number: 102101190000
Manufacturer: Certgate
Connection Method: USB
