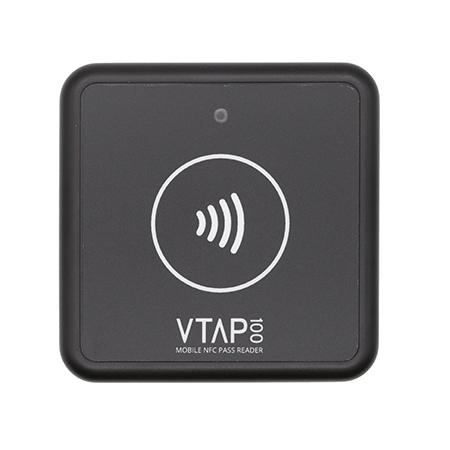

VTAP100-USB mobile pass NFC reader in square case

VTAP100-USB mobile pass NFC reader in square case
Availability: Contact Us info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
Please contact us for availability and prices
Units
Per Unit
1+
£  123.00
100+
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.
VTAP100-USB is now available in a new compact case. Details for that product can be found here. If you would prefer VTAP100 in this square case please contact us for more information.

The VTAP100 from Dot Origin can selectively read and decrypt NFC pass data from iPhone or Android devices, and transfer this data to a connected system.

The VTAP100 reader can be used in many environments, including retail loyalty, gym check-in, and sports ticketing. The VTAP100 remains logically separate from any payment mechanism. This simplifies data and security considerations, and the human interaction. It does not support EMV payments, but can be used for stored value and points redemption applications.

VTAP100 has been designed to support a smooth transition from plastic to mobile NFC passes so, alongside mobile passes, the VTAP100 will also read popular contactless RFID or NFC smartcards and tags, to support mixed-use applications. It is fully certified by both Apple and Google to work with their respective VAS and Smart Tap protocols, supporting automatic pass selection on iOS, as well as on-board decryption.

A USB connection from any PC is used to configure the VTAP100, by editing simple text files. Keys can be easily updated but cannot be extracted from the device. The configuration can be locked, so that the device is password protected or read-only in general use.

The VTAP100-USB can output pass data over USB in the same way as a mag-stripe, barcode or QR code scanner. This can be a keyboard emulation or over a virtual COM port interface. This makes it possible to add the VTAP100 to existing systems without software changes, to update an established card or ticket experience, to one where passes are wholly electronic.

The VTAP100-USB is supplied in a compact desktop case with a captive USB cable. We can supply customised front labels for a small additional fee, typically for orders of 100 or more units.

This is all you need to get started with mobile NFC pass reading, as it includes access to create demonstration mobile passes, so that you can test your application. For production purposes you will need to use a third-party pass provider, or integrate directly with Apple and Google.

Includes a free license for Dot Origin's popular Read-a-Card software on request - ideal for customers wanting to integrate with web or desktop applications without using keyboard emulation.

Other versions of VTAP100 are available, for example the VTAP100-PAC-W has a Wiegand interface for access control and turnstiles, and the VTAP100-OEM is a pre-certified PCB module available to integrators, providing both USB and RS-232 serial connectivity. Please contact us to discuss availability of these options.

VTAP100-USB mobile pass NFC reader



Technical Specifications

Dimensions: SQ case - 86mm x 86mm x 25.5mm (3.39in x 3.39in x 1.00in); Other options on request
Front label: SQ case - 72.33mm x 72.33mm (2.85in x 2.85in) with 4mm (0.16in) radius corners
Power Supply: 5V DC via USB interface (typ. 110mA, max 150mA)
Mounting options: SQ case - 4 x mounting holes in desk/wallbox base plate
Weight: In SQ case: 98g (3.5oz)
Operating Temperature: -25 to +70°C (-13 to 158°F)
Operating Humidity: 0-95% RH (non-condensing)

NFC Interface

Frequency/standards: 13.56MHz, ISO 14443 and ISO 18092
Mobile pass compatibility:
  • Apple Wallet NFC passes (VAS protocol – classed as a VAS-only device)
  • Google Wallet NFC passes (Smart Tap protocol)
  • Pass auto-selection, including full Apple ECP compliance for iOS wake-up
  • Selective field extraction & decryption of pass data
  • Mobile device type detection and inclusion
  • Multiple simultaneous pass IDs, enrolment URL and STUID capture, where supported on mobile OS
Card/tag compatibility:
  • MIFARE Ultralight, Classic, DESFire, NFC Types 1..4;
  • UID/CSN reading as standard on all card types;
  • Secure data reading on MIFARE Classic as standard, others on request;
  • NFC tag reading on Type 2 and 4 (Ultralight/NTAG and DESFire/HCE)
Read range: Typically 25mm (1in) depending on environment and phone/card/tag antenna
Pass IDs: Up to 6 x Apple merchant IDs and 6 x Google collector IDs
ECC key slots: 6 total (shared between Apple & Google merchant IDs)

USB Interface

USB device types (can enable/disable as required):
  • USB Mass storage (for easy configuration, key loading & firmware updates);
  • Human interface device(standard barcode reader/keyboard emulation);
  • USB Virtual COM port (includes active, passive and file transfer modes)
Connector: Captive USB cable
Operating system support: Full support on Windows, Linux, OSX; support for keyboard emulation and virtual COM device types on Android; most other operating systems support keyboard emulation

Other features

Operator feedback: Buzzer and RGB LEDs (configurable default colour + automatic card and pass read beep)
Field configurable: Yes, using configuration files, and with password and hardware-based lock
Field upgradeable: Yes, using encrypted firmware file and secure bootloader, and factory reset feature
Hardware security: Cryptographic co-processor with secure hardware-based key storage
Encryption algorithms: ECDH, NIST P-256, ECDSA, HMAC SHA-256, AES-128 CTR, AES-256 GCM, ANSI-X9.63-KDF and HKDF according to RFC5869 using HMAC-SHA256

Compliance / Certification

Apple VAS, Google SmartTap, UKCA, CE, FCC, RoHS

24-month limited hardware warranty
Manufacturer's part number: VTAP100-USB-SQ


Manufacturer: Dot Origin

Connection Method: USB

VTAP100-USB mobile pass NFC reader
