ACR1552U-A2 AquaGuard USB contactless card reader

ACR1552U-A2 AquaGuard USB contactless card reader
Availability: Low stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 34.05
(£ 40.86 inc VAT)
Units
Per Unit
1+
£ 34.05
250+
Contact us
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.
The ACR1552 from ACS is a 13.56 MHz USB contactless smartcard reader that supports ISO 14443 type A and B cards, MIFARE, FeliCa, ISO 15693 and ISO 18092-compliant NFC cards and tags. This is the AquaGuard version of the popular reader offers dust and temporary water resistance, for operation challenging environments. The ACR1552 boasts faster read/write speeds than the earlier ACR1252 and compatibility with a still wider range of cards.

The ACR1552 supports modes including card reader/writer, card emulation and keyboard emulation (using a free software download).

The ACR1552 is CCID and PC/SC compliant, for maximum interoperability with various different devices and applications. Supports extended APDU messages (up to 64 kbytes).

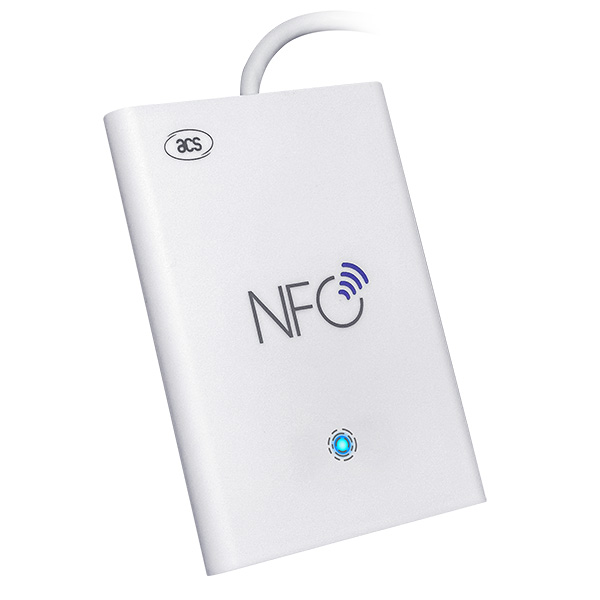

This ACR1552U model is housed in a white plastic IP67 rated case with a captive cable.

ACR1552U-A2 AquaGuard USB contactless card reader



Product:

Credential type(s): Contactless
NFC modes: Read and Write, Card emulation, Keyboard emulation (using free tool)
Form factor: Portable
Connector: USB Type A
OS support: Windows; Linux; Mac OS; Android

Contactless Card Interface:

Contactless interface standard: ISO 14443 Type A and B; ISO 18092 NFC; ISO 15693
Contactless credential types: MIFARE Classic, FeliCa
Contactless operating frequency: High (13.56MHz)
Data transmission protocol: T=CL
Contactless operating distance: Up to 70mm (2.76in) depending on tag type
Contactless read/write speed: 106/212/424/848kbps programmable (ISO14443); 26/53kbps (ISO15693)

Host Interface:

Host interface standards: USB CCID
Host data transmission speed (wired): 12 Mbps (USB 2.0 full speed) compatible with USB 3.0

Other Features:

Status indicator: 1 x programmable RGB LED (blue, green and red); 1 x programmable buzzer (monotone)
Firmware in-field upgradeable: Yes over USB

Certifications:

Manufacturer's warranty: 1 year
MTBF: 5008239000hrs
Type approvals: CE, UKCA, FCC, RoHS, REACH, WEEE
Security certifications: FIPS 140-2 Level 3
Application approvals: VCCI (Japan), KC (Korea)

Physical:

Dimensions: 85 x 60 x 9mm (3.35 x 2.36 x 0.35in)
Weight (±5%): 67g (2.4oz)
Cable length supplied: 1m (39in) captive

Power:

Supply Voltage: 5V DC
Current Consumption: 300mA max
Battery power option: No

Environment:

Operating temperature: 0 to 60degC (32 to 140degF)
Operating humidity: Up to 90% RH (non-condensing)

Manufacturer's part number: ACR1552U-A2

Country of origin: China
HSF code: 84719000

Manufacturer: ACS

Connection Method: USB
