Thales NFC contactless reader

Availability: In stock

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.

Qty

(£ 55.39 inc VAT)

Units

Per Unit

£ 46.16

10+

£ 44.78

50+

£ 43.39

100+

£ 41.54

500+

Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.

The Thales NFC reader is a 13.56 MHz USB contactless smartcard reader that supports a wide range of credentials, including ISO 14443 type A and B cards, MIFARE, FeliCa, ISO 15693 and ISO 18092-compliant NFC cards and tags. This is a robust reader that can be used in challenging environments, tested to IP67 for resistance to dust and water.

The reader supports modes including card reader/writer, card emulation and keyboard emulation.

The Thales NFC reader is CCID and PC/SC compliant, for maximum interoperability with various different devices and applications and supports download speeds up to 848kbps.

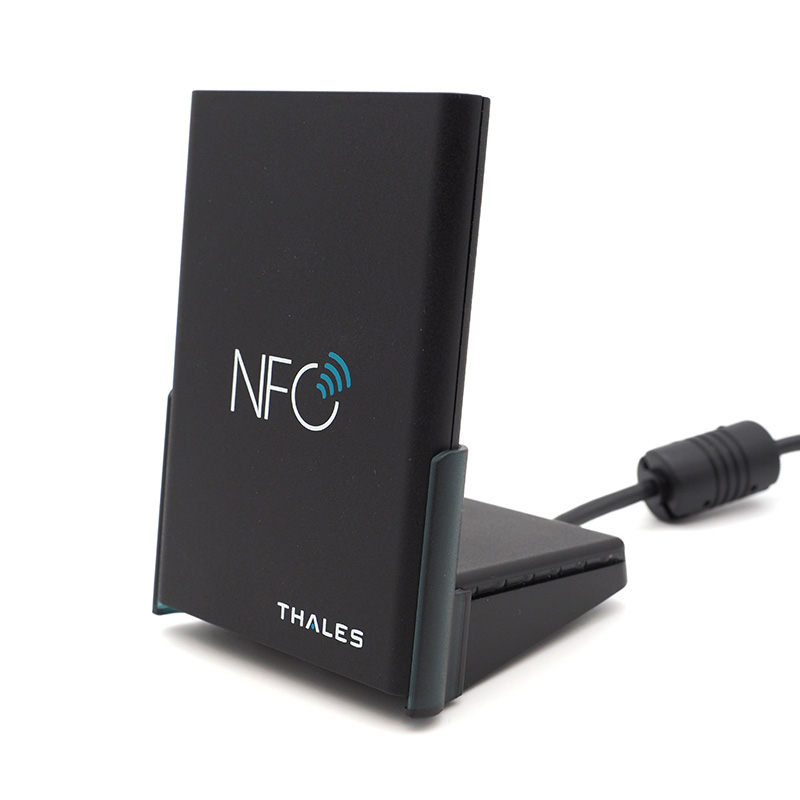

This particular model is housed in a sleek black plastic case with a captive cable, USB-C to USB-A adapter, and cleverly designed stand for desk mounting at a convenient angle.

Thales part number 962-000038-001

Thales NFC reader

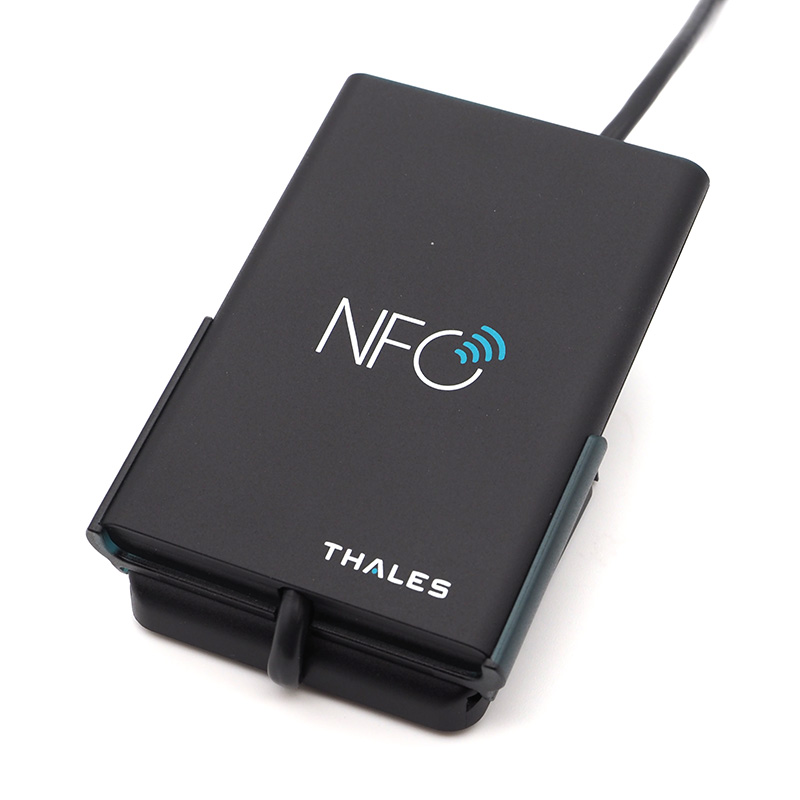

Below is an additional photo of the Thales NFC reader.

Product:

Credential type(s): Contactless
NFC modes: Read and Write, Card emulation, Keyboard emulation
Form factor: Portable
Connector: USB Type C and USB Type A (with USB-C to USB-A converter included)
OS support: Windows; Mac OS

Contactless Card Interface:

Contactless interface standard: ISO 14443 Type A and B; ISO 18092 NFC; ISO 15693
Contactless credential types: MIFARE Classic, FeliCa
Contactless operating frequency: High (13.56MHz)
Data transmission protocol: T=CL
Contactless operating distance: Up to 70mm (2.76in) depending on tag type
Contactless read/write speed: 106/212/424/848kbps programmable (ISO14443); 26/53kbps (ISO15693)

Host Interface:

Host interface standards: USB CCID
Host data transmission speed (wired): 12 Mbps (USB 2.0 full speed) compatible with USB 3.0

Other Features:

Status indicator: 1 x programmable LED (red, green and blue)
Firmware in-field upgradeable: Yes

Certifications:

Manufacturer's warranty: 1 year
MTBF: 5008239000hrs
Type approvals: CE, UKCA, FCC, RoHS, REACH, WEEE
Application approvals: J-LIS (Japan), VCCI (Japan), KC (Korea)

Physical:

Dimensions: 85 x 60 x 9mm (3.35 x 2.36 x 0.35in)
Weight (±5%): 67g (2.4oz)
Cable length supplied: 1m (39in) captive

Power:

Supply Voltage: 5V DC
Current Consumption: 300mA max
Battery power option: No

Environment:

Operating temperature: 0 to 60degC (32 to 140degF)
Operating humidity: 90% RH (non-condensing)

Manufacturer's part number: 962-000038-001

Country of origin: Vietnam
HSF code: 8471900000

Manufacturer: Thales

Connection Method: USB

Thales NFC reader

Thales NFC Technical Specification

Datasheet_thales-nfc-reader-contactless-pb_Sep25.pdf
Datasheet for the Thales NFC USB smartcard reader from Thales.

download

Thales NFC Product Briefing

THALES_NFC_product_briefing.pdf
Download everything you have read here on SmartcardFocus about the Thales NFC USB smartcard reader.

download
